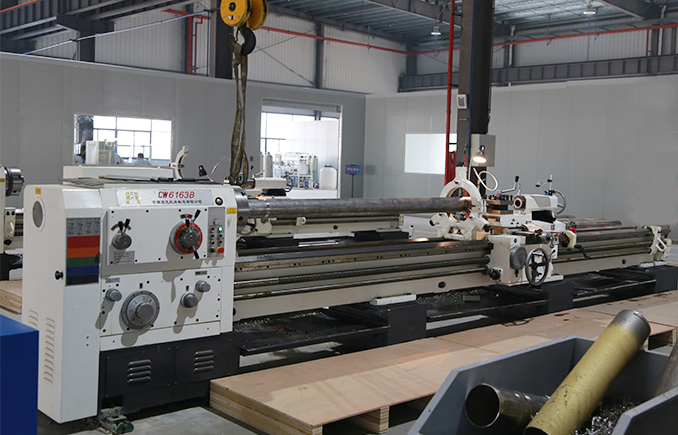

lathe

characteristic:

The bed adopts double ribs with large width and side walls. The internal ribs adopt the combination of box and inclined ribs, and the overall rigidity is one third higher than that of the single-wall ribs. Concentration of operation, skateboard with a quick-shift mechanism, with a single handle visual manipulation; spindle forward and reverse conversion and brake hydraulic control. Lathe structural rigidity and transmission stiffness are both high, accuracy is stable, and powerful cutting can be performed. The lathe guideway adopts supersonic audio quenching. The saddle rail adopts “TSF” flexible belt wear-resistant material, which is light and flexible for movement and long service life. The lubrication system is used outside the box to improve the machining accuracy.

Technical Parameters:

Maximum swivel diameter 500mm on the bed, quenched hardness HRC52, swivel diameter 800mm for the largest part of the bed, maximum workpiece length 6000mm, maximum swivel diameter 480mm for the saddle, maximum turning length 5000mm, spindle center hole diameter 105mm, spindle speed and number and range 6 -800 revolutions/minute, 72 kinds of feed (longitudinal, horizontal), screw pitch 12mmm, tool cross section size 30x30, maximum transverse stroke of bottom tool holder 420mm, maximum stroke of bottom tool holder 200mm, tailstock sleeve And the top taper Morse 6, the main motor power 11Kw, fast motor power 1.1Kw, three-jaw chuck diameter 325mm, the center frame diameter 40-350mm, the knife holder diameter 30-120mm, center distance 1500.
